Internal combustion loader

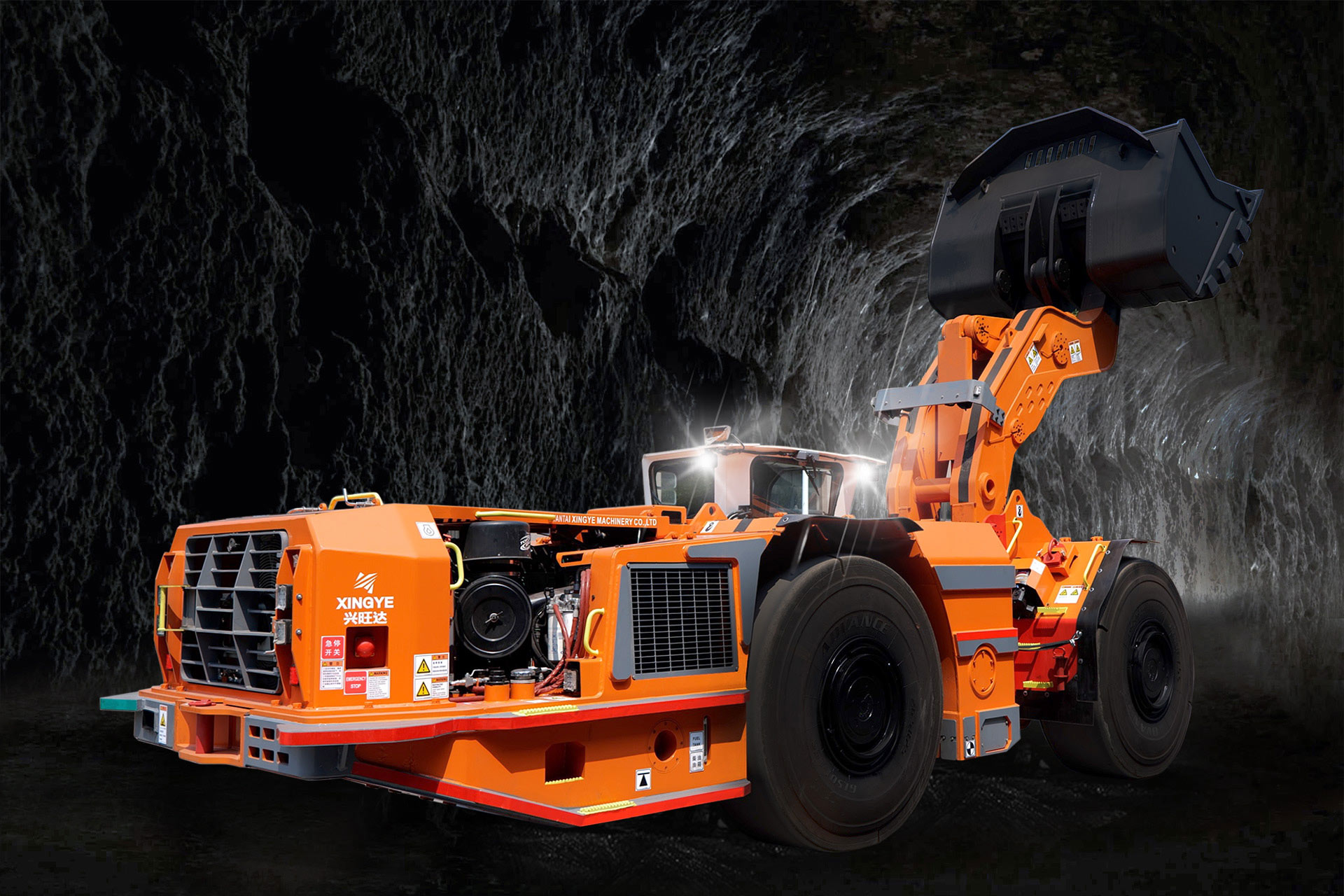

XYWJ-6 (L14) underground internal combustion loader, which has significant improvements in operation and maintenance ergonomics. Further improve the safety level of the existing underground loader, making operation and maintenance more smooth. The cabin space has been greatly improved, making the driver’s operation more comfortable.
Better overall stability and larger bucket size can improve productivity and profitability. The newly improved working mechanism makes it easier to load ore and reduces tire wear. The maximum unloading height can reach 2490mm, which can meet the requirements of loading 50T mining trucks during underground mining processes.
XYWJ-6 (L14) is equipped with an independent cab, which is easy to disassemble and maintain; Increasing the interior space of the cab has improved the comfort of the driver.
|
Parameters |
|
|
Dimensions (mm) |
10732×2945×2576 |
|
Rated load capacity |
14 000 kg |
|
Maximum digging force |
220kN |
|
Maximum traction force |
304kN |
|
Standard bucket capacity |
6.0m³ |
|
前进后退速度(配备VOLVO TAD1351 VE) |
|
|
1st gear |
4.9km/h |
|
2nd gear |
8.3km/h |
|
3 levels |
13.9km/h |
|
4th gear |
22.7km/h |
|
Work organization exercise time |
|
|
Arm raising time |
7.9 sec |
|
Arm drop time |
4.5 sec |
|
Overturning time |
2.2 sec |
|
Empty load* |
|
|
operating weight |
38 400 kg |
|
Front axle load |
17 200 kg |
|
Rear axle load |
21 200 kg |
|
Full load* |
|
|
operating weight |
52 400 kg |
|
Front axle load |
36 600 kg |
|
Rear axle load |
15 800 kg |
|
*The weight of the equipment depends on the selected options |
|
